Kibana

1. Introduction

Kibana is a powerful open-source data visualization and exploration platform designed to work seamlessly with Elasticsearch as part of the Elastic Stack. Originally developed by Elasticsearch (now Elastic) in 2013, Kibana has evolved into the leading solution for creating interactive dashboards, real-time data visualization, and comprehensive log analysis. As organizations increasingly generate massive volumes of structured and unstructured data across distributed systems, cloud platforms, and applications, Kibana serves as the visual interface that transforms raw Elasticsearch data into actionable insights through intuitive dashboards, advanced visualizations, and real-time monitoring capabilities that enable data-driven decision making across security, operations, business intelligence, and application performance monitoring use cases.

2. Why Do We Need Kibana?

Modern organizations face significant challenges in making sense of their ever-growing data volumes and complex information landscapes:

Data Visualization Complexity: Raw data stored in Elasticsearch requires sophisticated visualization tools to reveal meaningful patterns, trends, and anomalies hidden within massive datasets
Real-time Monitoring Needs: Operations teams need immediate visibility into system performance, security events, and business metrics to maintain service quality and respond to incidents quickly
Log Analysis Scalability: Traditional log analysis tools struggle to handle the velocity and variety of modern application logs, requiring scalable visualization solutions
Dashboard Creation Barriers: Technical barriers prevent non-technical stakeholders from accessing and exploring data independently, limiting organizational data literacy
Cross-functional Collaboration: Different teams require tailored views of the same underlying data, necessitating flexible dashboard creation and sharing capabilities
Alerting and Monitoring Gaps: Organizations need proactive monitoring solutions that can detect anomalies and trigger alerts based on complex data patterns

Kibana addresses these challenges by providing:

Intuitive Data Visualization with drag-and-drop interface and smart visualization suggestions through Kibana Lens
Real-time Dashboard Creation enabling immediate insights from streaming data with automatic refresh capabilities
Advanced Query Interface through Dev Tools for complex Elasticsearch queries and API testing
Flexible Presentation Layer with Canvas for pixel-perfect, interactive data storytelling and reporting
Machine Learning Integration for anomaly detection, forecasting, and predictive analytics capabilities
Collaborative Features supporting dashboard sharing, user access controls, and team-based data exploration

3. Kibana Architecture & Core Components

Overall Architecture

Kibana employs a layered architecture that sits on top of Elasticsearch, providing a web-based interface for data visualization, exploration, and management through modular components that handle user interactions, data queries, visualization rendering, and dashboard management.

Key Components

3.1 Kibana Server

Node.js Backend: Server-side application handling user authentication, API requests, and Elasticsearch communications
Web Interface: React-based frontend providing responsive, interactive user experience across browsers and devices
Plugin Architecture: Extensible system supporting custom visualizations, applications, and third-party integrations
Security Layer: Role-based access control (RBAC), authentication integration, and data security management

3.2 Visualization Engine

Kibana Lens: Drag-and-drop visualization builder with smart suggestions and intuitive data exploration capabilities
Classic Visualizations: Traditional chart types including line graphs, bar charts, pie charts, and heat maps
Geographic Mapping: Coordinate and region maps for location-based data analysis with multiple layer support
Time Series Analysis: Specialized visualizations for temporal data patterns and trend analysis

3.3 Dashboard Framework

Dashboard Builder: Interactive dashboard creation with panel management, layout controls, and responsive design
Filter and Query System: Global and panel-level filtering with KQL (Kibana Query Language) support
Time Range Controls: Flexible time range selection, auto-refresh capabilities, and time-based navigation
Variable Management: Dynamic dashboard variables for reusable, parameterized dashboard templates

3.4 Specialized Applications

Dev Tools Console: Elasticsearch query interface with syntax highlighting and autocomplete for API testing
Canvas: Pixel-perfect presentation tool for creating infographic-style data displays and reports
Machine Learning: Anomaly detection, forecasting, and data frame analytics with built-in ML algorithms
Application Performance Monitoring (APM): Distributed tracing and application performance visualization

4. Key Features & Characteristics

4.1 Querying and Filtering

Elasticsearch's robust query capabilities enable you to retrieve specific data from your datasets with powerful, flexible queries that support full-text search, boolean logic, fuzzy matching, proximity searches, and semantic search. Multiple query languages are supported:

Query DSL: Domain Specific Language for complex, programmatic queries
ES|QL: Elasticsearch Query Language for pipe-based data processing
SQL: Standard SQL interface for familiar database-style querying
EQL: Event Query Language for security and threat detection use cases
KQL: Kibana Query Language for intuitive, user-friendly searches
Lucene Query Syntax: Classic Lucene-style query expressions

Query tools include saved queries for reusability, Console for API testing, Search Profiler for performance analysis, Grok Debugger for pattern testing, and Playground for experimentation. Aggregations provide advanced data analysis capabilities, enabling statistical metrics calculation, data grouping into buckets, and nested multi-level analyses.

4.2 Explore with Discover

Discover lets you interact directly with raw data, serving as the starting point for exploratory analysis. Key capabilities include:

Browse documents in your indices with real-time data access
Apply filters and search queries with immediate visual feedback
Visualize results in real-time with automatic refresh capabilities
Explore fields and data patterns through interactive field statistics
Customize the Discover view with flexible column configuration
Save searches for reuse and sharing across teams
Run pattern analysis on log data for automated insights
Execute background search sessions for long-running queries

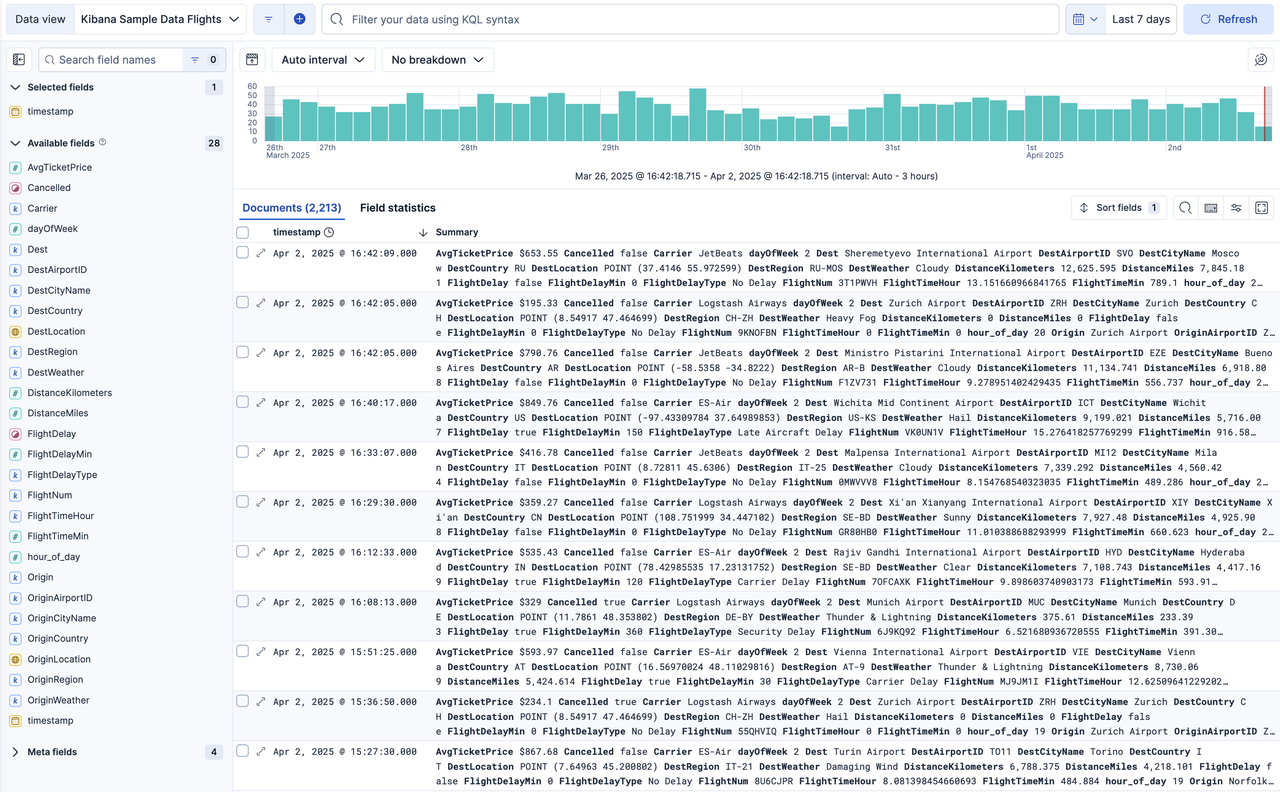

Explore with Discover.png

4.3 Dashboards and Visualizations

Dashboards serve as centralized hubs for visualizing and monitoring data insights with comprehensive presentation capabilities:

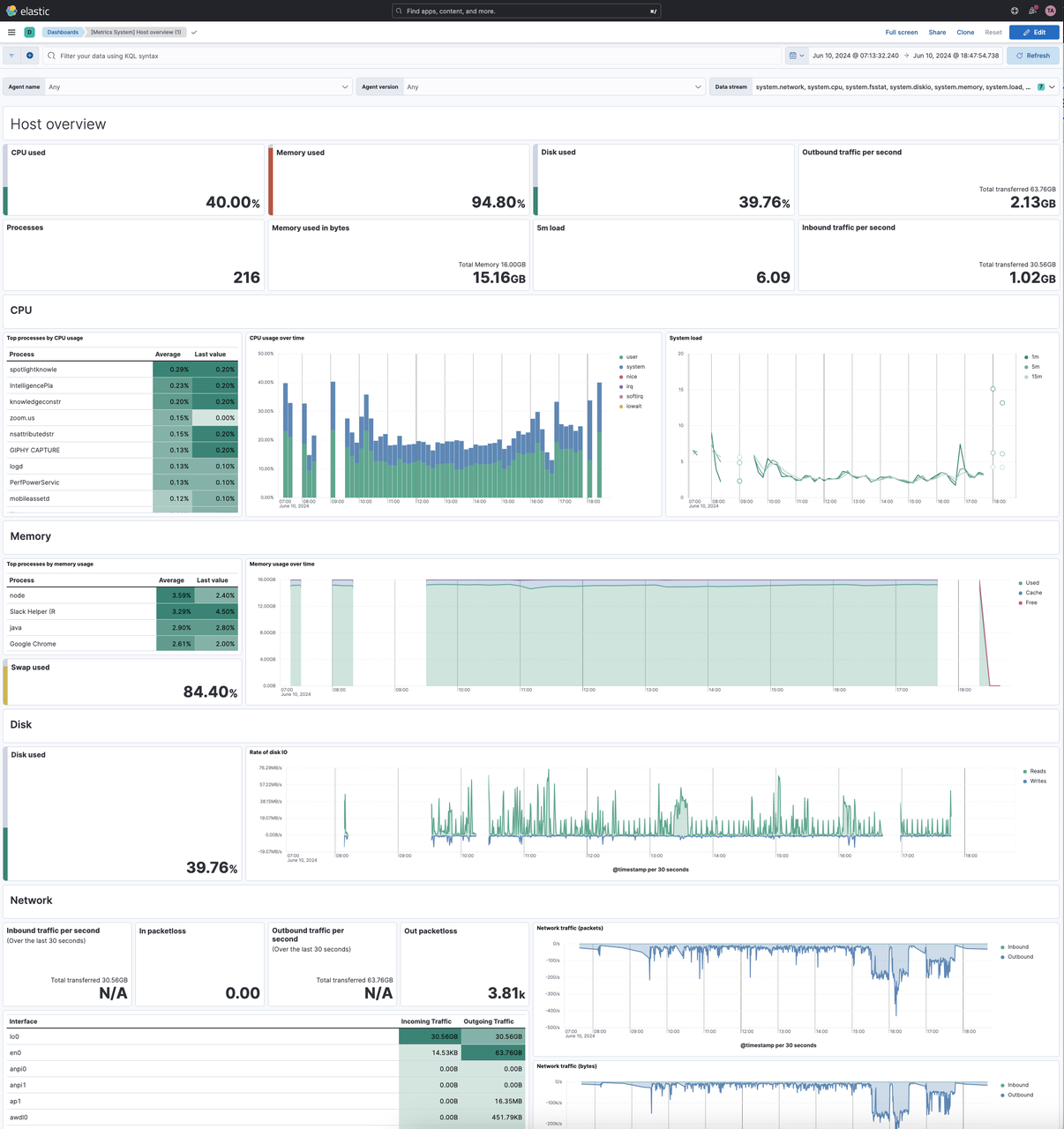

Dashboards and Visualizations.png

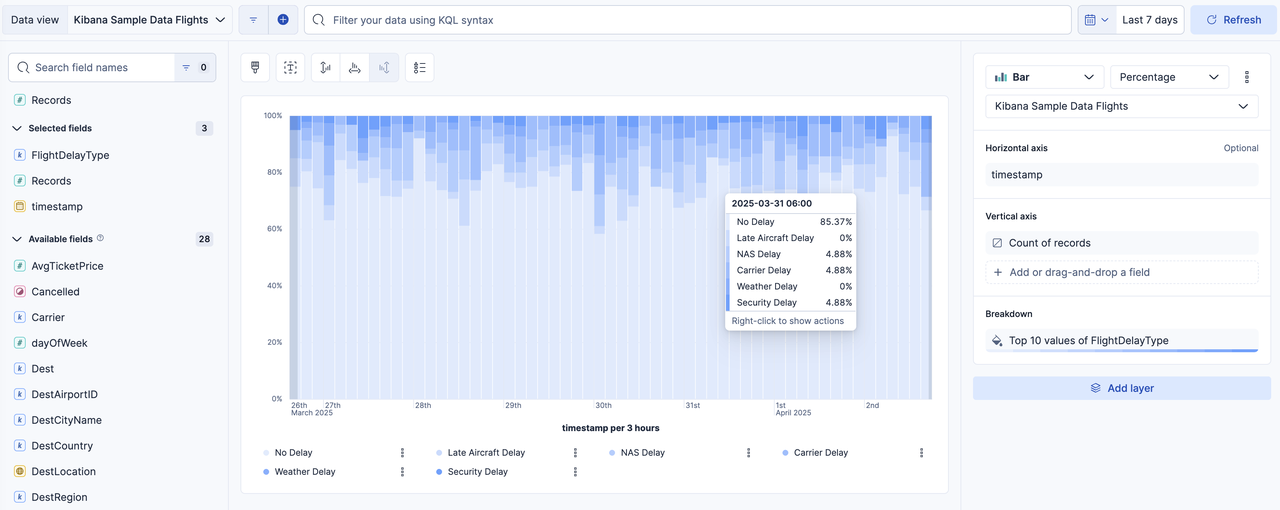

Dashboards and Visualizations-2.png

Dashboard Creation: Combine multiple visualizations into unified views with drag-and-drop interface
Interactive Controls: Add filter controls, time range selectors, and drill-down capabilities
Flexible Layout: Organize dashboard panels with responsive design for different screen sizes
Real-time Updates: Display live data with configurable refresh intervals and automatic updates

Visualization capabilities include:

Kibana Lens: Drag-and-drop visualization builder with smart suggestions
Chart Types: Comprehensive support for bar charts, line graphs, pie charts, heat maps, and more
Geographic Maps: Coordinate and region mapping for location-based analysis
Time Series: Specialized visualizations for temporal data and trend analysis
Custom Visualizations: Canvas for pixel-perfect presentations and Vega for advanced custom charts

4.4 Geospatial Analysis

Built-in geospatial capabilities enable comprehensive location-based data analysis including distance calculations, polygon and bounding box queries, and geohash grid aggregations. Features include coordinate mapping, region visualization, multiple layer support, and specialized tools for logistics, real estate, and IoT applications.

4.5 Machine Learning

Integrated machine learning capabilities provide proactive analytics for anomaly detection in time-series data, forecasting future trends, analyzing seasonal patterns, and performing powerful NLP operations. The platform includes built-in algorithms for outlier detection, regression analysis, classification tasks, and advanced text processing with semantic search capabilities.

4.6 Scripting and Data Transformation

Advanced scripting capabilities using Painless scripting language enable custom data manipulation and transformation during search and aggregation processes. Users can calculate custom metrics, implement conditional logic, and adjust data dynamically, ensuring tailored insights specific to business requirements.

4.7 Alerts and Cases

Comprehensive alerting system provides continuous monitoring with configurable rules and notifications:

Alert Rules: Create threshold-based, query-based, and ML-based alert conditions
Case Management: Organize and track security incidents and operational issues
Watcher Integration: Advanced scheduling and complex alerting workflows
Notification Channels: Multiple delivery methods including email, Slack, PagerDuty, and webhooks

4.8 Reporting and Sharing

Enterprise-ready reporting capabilities enable automated report generation and collaboration:

Multiple Formats: Generate reports in PDF, CSV, and other standard formats
Scheduled Reports: Automate report delivery with flexible scheduling options
Dashboard Sharing: Share interactive dashboards with stakeholders and teams
Content Management: Organize saved objects, data views, and files with tagging and search capabilities

5. Use Cases

5.1 Security Information and Event Management (SIEM)

Security teams use Kibana to create comprehensive dashboards for threat detection, incident response, and compliance monitoring by visualizing security events and network traffic patterns.

5.2 Application Performance Monitoring (APM)

Development and operations teams leverage Kibana APM for real-time application performance visualization, distributed tracing, and error analysis across microservices architectures.

5.3 Business Intelligence and Analytics

Business analysts utilize Kibana to create executive dashboards, track KPIs, analyze customer behavior, and generate insights from operational data.

5.4 Infrastructure and Operations Monitoring

IT operations teams implement Kibana dashboards for system monitoring, capacity planning, log analysis, and maintaining SLA compliance across cloud and on-premises infrastructure.

6. Practical Example

Complete Kibana Deployment with ELK Stack

# Docker Compose for Kibana with Elastic Stack
version: '3.8'
services:
  elasticsearch:
    image: docker.elastic.co/elasticsearch/elasticsearch:8.11.0
    container_name: elasticsearch
    environment:
      - node.name=elasticsearch
      - cluster.name=kibana-cluster
      - discovery.type=single-node
      - bootstrap.memory_lock=true
      - xpack.security.enabled=false
      - "ES_JAVA_OPTS=-Xms2g -Xmx2g"
    ulimits:
      memlock:
        soft: -1
        hard: -1
    volumes:
      - elasticsearch_data:/usr/share/elasticsearch/data
    ports:
      - "9200:9200"
    networks:
      - elastic

  kibana:
    image: docker.elastic.co/kibana/kibana:8.11.0
    container_name: kibana
    ports:
      - "5601:5601"
    environment:
      - ELASTICSEARCH_HOSTS=http://elasticsearch:9200
      - SERVER_NAME=kibana
      - SERVER_HOST=0.0.0.0
      - XPACK_MONITORING_COLLECTION_ENABLED=true
    volumes:
      - kibana_data:/usr/share/kibana/data
      - ./kibana.yml:/usr/share/kibana/config/kibana.yml
    networks:
      - elastic
    depends_on:
      - elasticsearch

  logstash:
    image: docker.elastic.co/logstash/logstash:8.11.0
    container_name: logstash
    ports:
      - "5044:5044"
      - "5000:5000/tcp"
      - "5000:5000/udp"
    volumes:
      - ./logstash.conf:/usr/share/logstash/pipeline/logstash.conf
      - ./logstash.yml:/usr/share/logstash/config/logstash.yml
    networks:
      - elastic
    depends_on:
      - elasticsearch

volumes:
  elasticsearch_data:
  kibana_data:

networks:
  elastic:
    driver: bridge

Custom Kibana Plugin Development

// Kibana plugin for custom visualization
import { PluginInitializerContext } from 'src/core/server';
import { CustomVisualizationPlugin } from './plugin';

export const plugin = (initializerContext: PluginInitializerContext) =>
  new CustomVisualizationPlugin(initializerContext);

export { CustomVisualizationPluginSetup, CustomVisualizationPluginStart } from './types';

// Plugin implementation
export class CustomVisualizationPlugin
  implements Plugin<CustomVisualizationPluginSetup, CustomVisualizationPluginStart> {

  constructor(private readonly initializerContext: PluginInitializerContext) {}

  public setup(core: CoreSetup, { expressions, visualizations }: CustomVisualizationPluginSetupDeps) {
    // Register custom expression function
    expressions.registerFunction({
      name: 'custom_metric_visualization',
      type: 'render',
      inputTypes: ['datatable'],
      help: 'Custom metric visualization with advanced formatting',
      args: {
        metric: {
          types: ['string'],
          help: 'Field to use for metric calculation',
          required: true
        },
        format: {
          types: ['string'],
          help: 'Number formatting pattern',
          default: '0,0.00'
        }
      },
      fn: (context, args) => ({
        type: 'render',
        as: 'custom_metric_vis',
        value: {
          context,
          ...args
        }
      })
    });

    // Register visualization type
    visualizations.createBaseVisualization({
      name: 'custom_metrics',
      title: 'Custom Metrics Visualization',
      icon: 'visMetric',
      description: 'Display key metrics with custom formatting and thresholds',
      visConfig: {
        defaults: {
          metric: '',
          format: '0,0.00',
          colorMode: 'Labels',
          colorsRange: [
            { from: 0, to: 1000 },
            { from: 1000, to: 2000 },
            { from: 2000, to: Infinity }
          ],
          invertColors: false
        }
      },
      editorConfig: {
        collections: {},
        schemas: new Schemas([
          {
            group: 'metrics',
            name: 'metric',
            title: 'Metric',
            min: 1,
            max: 1,
            aggFilter: ['avg', 'sum', 'count', 'max', 'min'],
            defaults: [{ schema: 'metric', type: 'count' }]
          }
        ])
      },
      requestHandler: 'courier',
      responseHandler: 'basic'
    });

    return {};
  }

  public start(core: CoreStart) {
    return {};
  }
}

Advanced Dashboard Automation

# Python script for automated dashboard creation and management
import requests
import json
import os
from datetime import datetime, timedelta

class KibanaDashboardManager:
    def __init__(self, kibana_url, username=None, password=None):
        self.kibana_url = kibana_url.rstrip('/')
        self.session = requests.Session()

        if username and password:
            self.session.auth = (username, password)

        # Set common headers
        self.session.headers.update({
            'Content-Type': 'application/json',
            'kbn-xsrf': 'true'
        })

    def create_index_pattern(self, pattern_name, time_field='@timestamp'):
        """Create Kibana index pattern"""
        payload = {
            "attributes": {
                "title": pattern_name,
                "timeFieldName": time_field,
                "fields": "[]"
            }
        }

        response = self.session.post(
            f"{self.kibana_url}/api/saved_objects/index-pattern",
            json=payload
        )
        return response.json()

    def create_visualization(self, viz_config):
        """Create Kibana visualization"""
        payload = {
            "attributes": {
                "title": viz_config['title'],
                "visState": json.dumps(viz_config['vis_state']),
                "uiStateJSON": "{}",
                "description": viz_config.get('description', ''),
                "kibanaSavedObjectMeta": {
                    "searchSourceJSON": json.dumps(viz_config.get('search_source', {}))
                }
            }
        }

        response = self.session.post(
            f"{self.kibana_url}/api/saved_objects/visualization",
            json=payload
        )
        return response.json()

    def create_dashboard(self, dashboard_config):
        """Create comprehensive dashboard"""
        # Create visualizations first
        panel_references = []

        for i, viz in enumerate(dashboard_config['visualizations']):
            viz_response = self.create_visualization(viz)
            viz_id = viz_response['id']

            # Create panel reference
            panel_references.append({
                "name": f"panel_{i}",
                "type": "visualization",
                "id": viz_id
            })

        # Create panels JSON
        panels = []
        for i, (viz, ref) in enumerate(zip(dashboard_config['visualizations'], panel_references)):
            panel = {
                "version": "8.11.0",
                "gridData": {
                    "x": (i % 2) * 24,
                    "y": (i // 2) * 15,
                    "w": 24,
                    "h": 15,
                    "i": str(i)
                },
                "panelIndex": str(i),
                "panelRefName": ref["name"]
            }
            panels.append(panel)

        # Create dashboard
        dashboard_payload = {
            "attributes": {
                "title": dashboard_config['title'],
                "hits": 0,
                "description": dashboard_config.get('description', ''),
                "panelsJSON": json.dumps(panels),
                "timeRestore": False,
                "timeTo": "now",
                "timeFrom": "now-24h",
                "refreshInterval": {
                    "pause": False,
                    "value": 30000
                },
                "kibanaSavedObjectMeta": {
                    "searchSourceJSON": "{\"query\":{\"query\":\"\",\"language\":\"kuery\"},\"filter\":[]}"
                }
            },
            "references": panel_references
        }

        response = self.session.post(
            f"{self.kibana_url}/api/saved_objects/dashboard",
            json=dashboard_payload
        )
        return response.json()

# Usage example
kibana_manager = KibanaDashboardManager('http://localhost:5601')

# Create index pattern
index_pattern = kibana_manager.create_index_pattern('application-logs-*')

# Define dashboard configuration
dashboard_config = {
    'title': 'Application Performance Dashboard',
    'description': 'Real-time application performance monitoring',
    'visualizations': [
        {
            'title': 'Response Time Over Time',
            'description': 'Application response time trends',
            'vis_state': {
                "title": "Response Time Over Time",
                "type": "line",
                "params": {
                    "grid": {"categoryLines": False, "style": {"color": "#eee"}},
                    "categoryAxes": [{"id": "CategoryAxis-1", "type": "category", "position": "bottom", "show": True}],
                    "valueAxes": [{"id": "ValueAxis-1", "name": "LeftAxis-1", "type": "value", "position": "left", "show": True}],
                    "seriesParams": [{"show": True, "type": "line", "mode": "normal", "data": {"label": "Average response_time_ms", "id": "1"}, "valueAxis": "ValueAxis-1", "drawLinesBetweenPoints": True, "showCircles": True}]
                },
                "aggs": [
                    {"id": "1", "enabled": True, "type": "avg", "schema": "metric", "params": {"field": "response_time_ms"}},
                    {"id": "2", "enabled": True, "type": "date_histogram", "schema": "segment", "params": {"field": "@timestamp", "interval": "auto", "customInterval": "2h", "min_doc_count": 1, "extended_bounds": {}}}
                ]
            },
            'search_source': {
                "index": index_pattern['id'],
                "query": {"match_all": {}},
                "filter": []
            }
        }
    ]
}

# Create dashboard
dashboard_result = kibana_manager.create_dashboard(dashboard_config)
print(f"Dashboard created: {dashboard_result}")

7. Key Takeaways

Kibana provides comprehensive data visualization as the visual interface for Elasticsearch, enabling intuitive exploration and analysis of massive datasets through interactive dashboards and advanced visualizations
Drag-and-drop simplicity with Kibana Lens democratizes data visualization, allowing users to create sophisticated charts and analytics without technical expertise while providing smart visualization suggestions
Flexible architecture supports diverse use cases from security monitoring and log analysis to business intelligence and application performance monitoring through specialized tools like Canvas, Dev Tools, and ML features
Real-time capabilities enable operational intelligence with automatic dashboard refresh, live data streaming, and immediate alerting for mission-critical monitoring and incident response
Enterprise-ready platform provides scalability, security, and extensibility through plugin architecture, role-based access control, and integration capabilities for modern data-driven organizations

8. FAQ

Q: What's the difference between Kibana and other visualization tools like Tableau or Power BI?

A: Kibana is specifically designed for Elasticsearch data with real-time capabilities and log analysis focus, while Tableau/Power BI are general-purpose BI tools with broader data source support but different optimization for time-series and log data.

Q: Can Kibana work with data sources other than Elasticsearch?

A: Kibana is primarily designed for Elasticsearch, but through Elastic's ecosystem and third-party plugins, it can access some external data sources. For diverse data sources, consider Elastic's data ingestion tools.

Q: How does Kibana handle large datasets and performance optimization?

A: Kibana leverages Elasticsearch's distributed architecture, supports data sampling, index patterns, and provides caching mechanisms. Performance depends on Elasticsearch cluster configuration and query optimization.

Q: What's the learning curve for creating effective Kibana dashboards?

A: Basic dashboards can be created quickly with Kibana Lens drag-and-drop interface. Advanced features like Canvas, custom queries, and ML integration require deeper knowledge of Elasticsearch and data visualization principles.

9. Additional Resources & Next Steps

Learn More

Videos

Get Started

Ready to transform your data into actionable insights with Kibana? Begin with our installation guide and start creating powerful dashboards that unlock the value of your Elasticsearch data.

Visualize Your Data: Deploy Kibana today and turn your raw data into compelling visual stories with the industry's most powerful Elasticsearch visualization platform.
